Ultrasonic Fetal Doppler Baby Fetal Heart Rate Monitor 2.0Mhz Probe with FHR Scale with Loudspeaker

  • Sale
  • Regular price Dhs. 135.00



Item Type: Blood Pressure
Commodity Quality Certification: 3C,CE
Application: Palm
Brand Name: OTHER
Material: ABS
Model Number: NF1
Size: 13-4-7CM
Screen: LCD
ITEM Color: PINK
Power: Two pieces of 1.5 V DC battery (SIZE AA LR6)
Battery: NOT included
Certificate: CE ISO
Probe: 2.0mhz



Product Description

Fetal heart monitor

Features and specifications:

Product description

Listen to your unborn heartbeat in the privacy of your own home.

Please note:
1. This product can only be used after 16 weeks of pregnancy.
2. This product is not a diagnostic device and you should consult your doctor if you have any concerns about your baby's health.

Product showcase

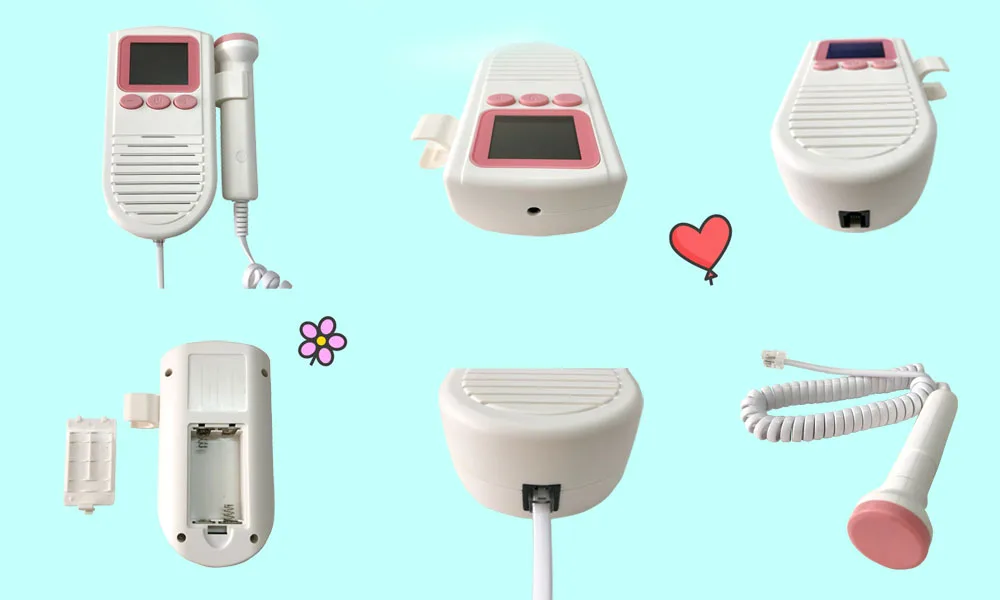

Product images



Device layout

1. Probe frequency
2. Volume( from 1 to 8)
3. Remaining battery power
4. Fetal heart beat
5. Volume -
6. Volume +
7. Power/Menu
8. Speaker

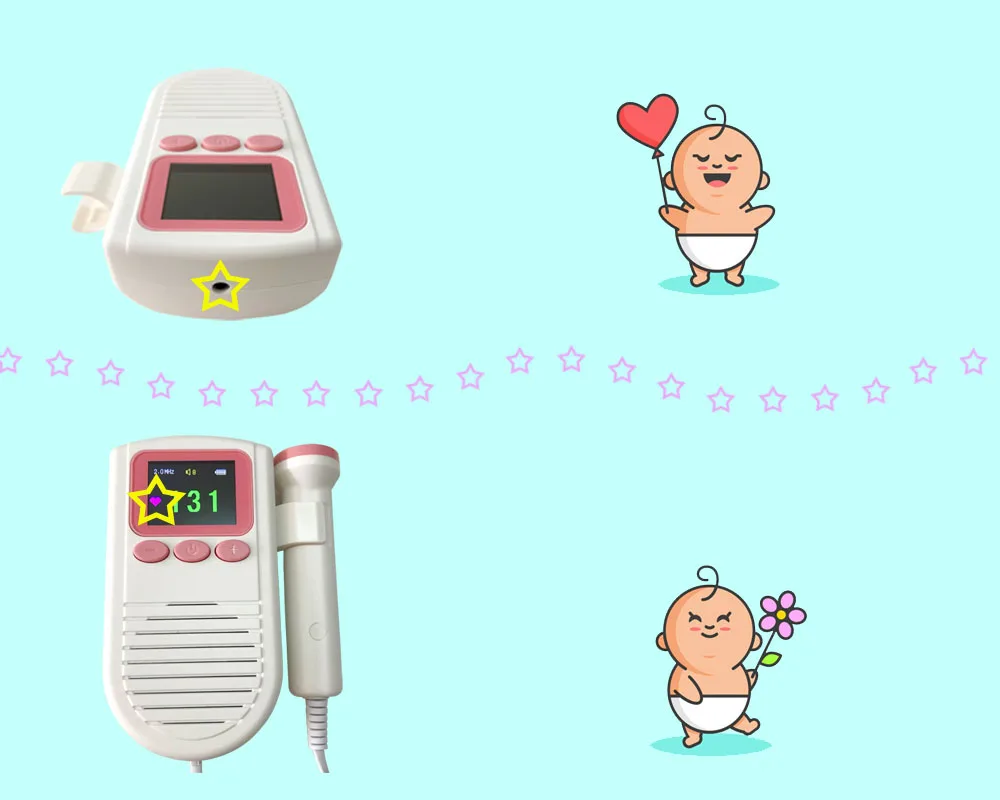

Two display settings

Tips

1. Using earphones is recommended for hearing more detailed heart beat information.
2. Alarm function: An alarm will sound if the baby's heat rate drops into an unsafe range below 120bpm or above 160bpm.

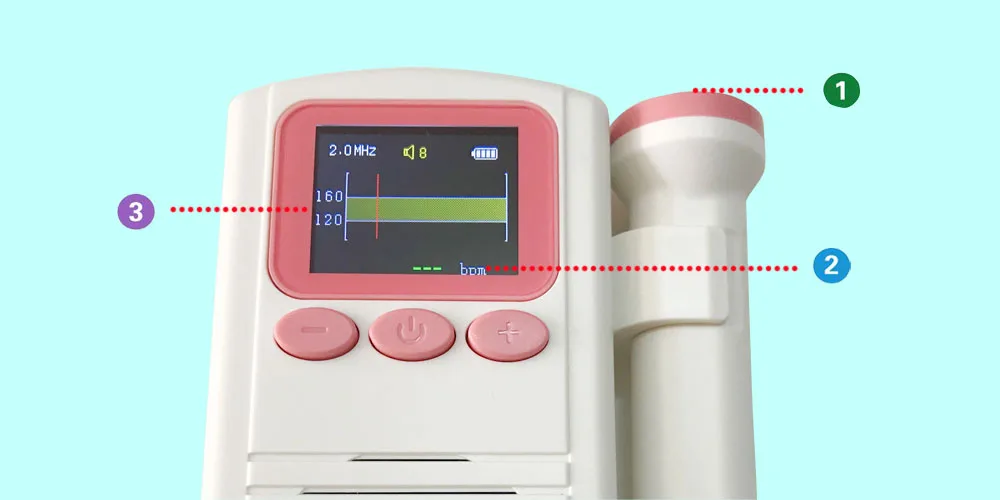

1. 2.0mhz Probe
2. FHR showed number
3. FHR SCALE

Protective film

Protective film protects your screen from dings and scratches

Package contents

1. Main unit
2. 2.0mhz probe
3. English User Manual
4. Retail packaging

Specifications

 Working frequency: 2.0 MHz ± 10%
 Ultrasonic output power:: Iob≤10 mW/cm2
 Overall Sensitivity: ≥ 90 dB (Integrated sensitivity 200mm away from the the surface of the probe)
 While measuring integrated sensitivity, using the Doppler frequency (300 ± 50) Hz
 Reflecting target speed: 10cm / s ~ 40cm / s
 FHR measuring range : No narrower than 50bpm-240bpm (± 2bpm). (Beat Per Minute)
 FHR Accuracy: ± 2 BPM
 Spatial-peak temp-peak acoustic pressure:≤ 0.1 MPa.
 Negative Peak Sound Pressure:(p_)<1Mpa
 Output Beam Intensity:(Iob)<20mW/cm2
 Spatial-peak Temporal-average Derived Intensity:(Ispta)<100mW/cm2
 Continuous working time: ≥5h (Low battery capacity or large volume may reduce working hours)
 Coupling gel Acoustic impedance:1.5 ~1.6 (105g/cm2.s)
 Audio output power:≤1.0W
 Battery Type Recommended: Two pieces of 1.5 V DC battery (SIZE AA LR6).
 Working environment: Temperatrue: +5 ℃ ~ +40 ℃ Humidity: ≤ 80% Atmospheric pressure: 86kPa ~ 106kPa
 Transport and storage environment: Temperatrue: -10 ℃ ~+40℃ Humidity: ≤ 80%
 Atmospheric pressure: 86kPa ~ 106kPa,well-ventilated room without corrosive gases.
